| Model No | Asus Rog Strix AMD X670E-I DDR5 Gaming Wifi Motherboard |
| Part No | 90MB1B70-M0EAY0 |
| Chipset | AMD X670 |
| Form Factor | Mini-ITX Form Factor 6.7 inch x 6.7 inch( 17cm x 17cm) |
| Socket Compatibility | AMD Socket AM5 for AMD Ryzen™ Desktop Processors* |
| Wireless & Bluetooth | Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. |
| Ethernet | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Graphics | 1 x HDMI® port* 2 x USB4® ports support USB Type-C® display outputs** *Supports 4K@60Hz as specified in HDMI 2.1. ** VGA resolution support depends on processors’ or graphic cards’ resolution. |
| Memroy | 2 x DIMM, Max. 96GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
| Storage Compatibility | Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode) AMD X670 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 2 x SATA 6Gb/s ports**** *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1 and SATA RAID 0/1. **** Install ROG FPS-II Card to support 2 x SATA 6Gb/s ports |
| Back Panel I/O Ports | 2 x USB4® port(s) with Intel® JHL8540 USB4® controller (2 x USB Type-C®) 5 x USB 3.2 Gen 2 port(s) (5 x Type-A) (1 port supports ROG STRIX HIVE) 3 x USB 2.0 port(s) (3 x Type-A) 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® I225-V 2.5Gb Ethernet port |
| USB Ports | Rear USB (Total 10 ports) 2 x USB4® port(s) with Intel® JHL8540 USB4® controller (2 x USB Type-C®) 5 x USB 3.2 Gen 2 port(s) (5 x Type-A) 3 x USB 2.0 port(s) (3 x Type-A) Front USB (Total 3 ports) 1 xUSB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports ROG STRIX HIVE (Total 2 ports) 1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C®) 1 x USB 2.0 port(s) (1 x Type-A) ROG FPS-II C (Total 3 ports) 2 x USB 2.0 header(s) additional 3 USB 2.0 ports** |
| Expansion Slots | AMD Ryzen™ 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot(s) |
| Audio | ROG High Definition Audio CODEC ALC4050 – Supports: Jack-detection – High quality 118 dB SNR stereo playback output and 94 dB SNR recording input – Supports up to 32-Bit/384 kHz playback Audio Features – ROG Hyper-Grounding Technology – ESS® SABRE9260Q DAC – Silver-plated audio jacks – Optical S/PDIF out port & USB Type-C® port with indepent power solution – Dedicated audio PCB layers *All audio functions on ROG STRIX X670E-I GAMING WIFI are supported through ROG STRIX HIVE |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin AIO Pump header(s) 1 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C® ) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports Miscellaneous 1 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x RTC Battery header 1 x Thermal Sensor header 1 x 2 pin Power_BTN header 2 x USB Type-C® connectors to Install ROG FPS-II card* ROG FPS-II card 2 x SATA 6Gb/s ports 1 x CPU Over Voltage jumper 1 x Clear CMOS header 1 x Front Panel header 1 x Alteration mode switch 2 x USB 2.0 header(s) support(s) additional 3 USB 2.0 ports |
| Special Features | Extreme Engine Digi+ -5K Black Metallic Capacitors ASUS Q-Design – M.2 Q-Latch – Q-DIMM – Q-Slot ASUS Thermal Solution – M.2 heatsink – Aluminum backplate – M.2 Chipset Fan – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – ProCool II – Pre-mounted I/O shield – SafeSlot – SafeDIMM AURA Sync – AURA RGB header(s) – Addressable Gen 2 header(s) ROG STRIX HIVE 1 x USB Type-C® connects to Motherboard 1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C®) 1 x USB 2.0 port(s) (1 x Type-A with BIOS FlashBack™) 1 x Headphone jack with Mic in 1 x Mic in jack with Optical S/PDIF out 1 x EZ mode PBO button 1 x FlexKey button 1 x BIOS FlashBack™ button 1 x Volume Control Knob with Mute Button Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
| Package Content | Cables 2 x SATA 6Gb/s cables 1 x ROG USB2.0 splitter cable 1 x Panel Cable ROG FPS-II Card 1 x ROG FPS-II Card ROG STRIX HIVE 1 x ROG STRIX HIVE 1 x USB Type-C® power connection cable Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x Rubber Package(s) for M.2 1 x Q-Latch package(s) for M.2 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card Installation Media 1 x User guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Manageability | WOL by PME, PXE |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Warranty | 1 Year ( As per Manufacturer Policy ) |

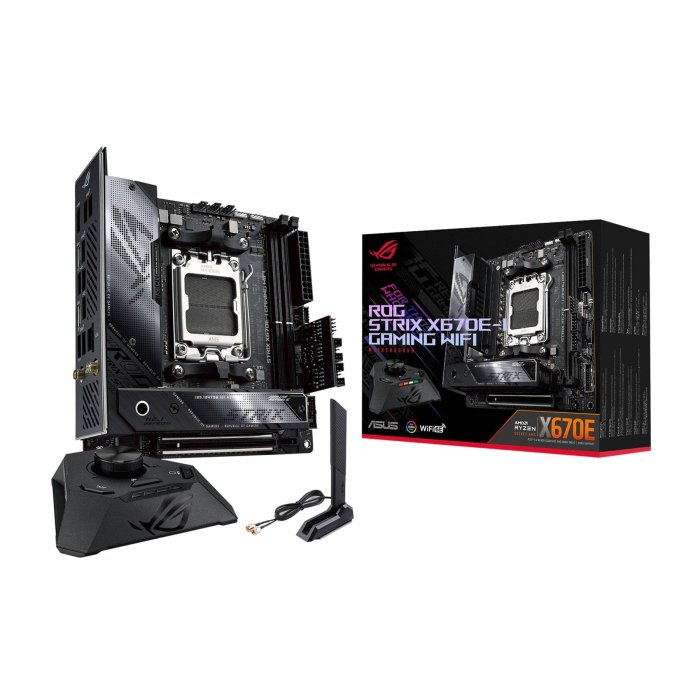

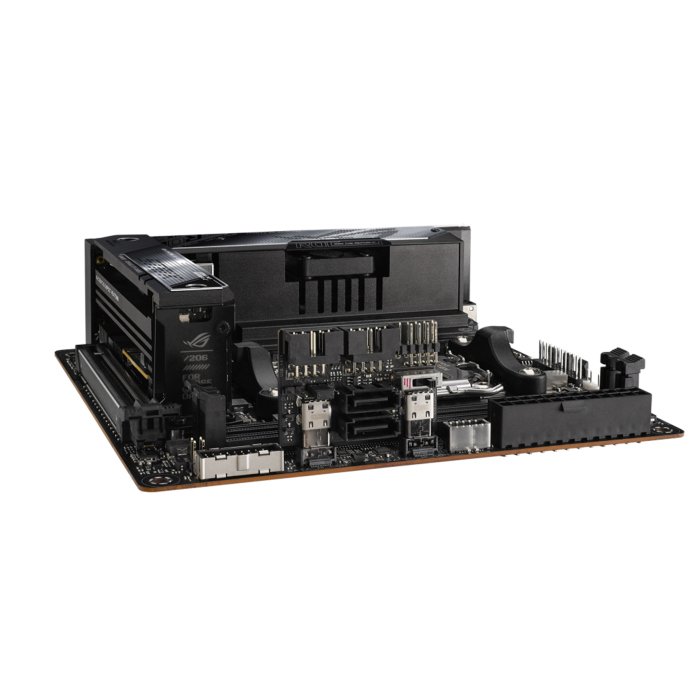

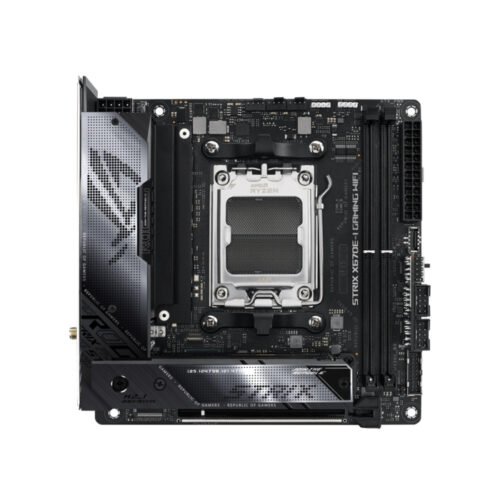

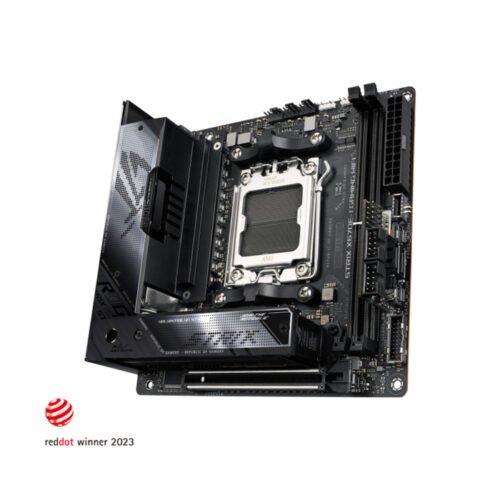

Asus Rog Strix AMD X670E-I DDR5 Gaming Wifi Motherboard
145.00 KD
| Brand |
Asus |
|---|---|
| Item No |
BP004264 |
1 in stock
